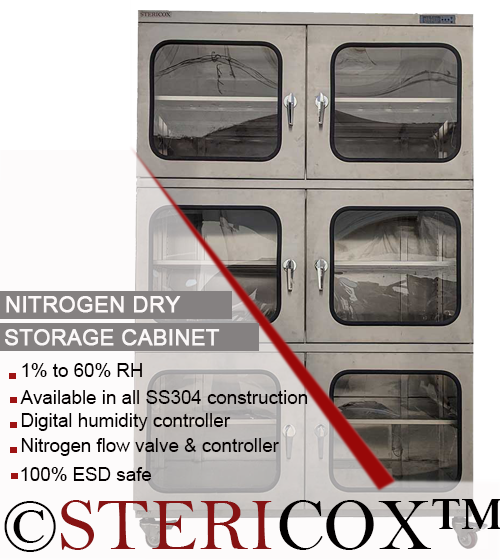

Nitrogen storage cabinets are designed to store electronic components and wafers between 1% to 60% RH in presence of Nitrogen (N2) gas. These desiccator cabinets provide ideal storage environment where high oxidation is a concern. In such N2 dry cabinets, air is replaced with Nitrogen gas to avoid oxidation issues. These cabinets confirm IPC/JEDEC J-STX-033C standard and available in different sizes with ESD safe paint coating. In addition, these cabinets are also called wafer storage cabinets or wafer storage desiccator cabinet.
A digital humidity controller is fitted on front top side of the cabinet, which continuously displays humidity level on LED display. User can set desired humidity level by pressing key buttons. This controller has in-built memory storage facility; in case of interruption in power supply, user does not need to set humidity level again, this controller keeps running the N2 dry cabinet at previous set value. A Nitrogen gas flow meter with control valve is also fitted on side of the cabinet. User has to connect Nitrogen gas pipe to flow meter; which automatically adjusts the flow of Nitrogen gas according to humidity level.
We are N2 cabinet manufacturers and suppliers in India. If you are looking to buy a low humidity storage cabinet with nitrogen purge facility, STERICOX is the right choice for you. These N2 cabinets are supplied all over India at wholesale price with complete installation and commissioning facilities. We also make customized cabinets that meet your specific requirements.
FEATURES & BENEFITS
- 1% to 60 RH range
- Efficient nitrogen flow meter
- Automatically adjusts nitrogen level as per RH
- Digital control panel for RH
- Imported Honeywell RH sensor
- ESD safe black / gray paint
- Air tight zinc alloy lock
- 1.2 mm galvanized steel construction
- Toughened glass windows on door
- Caster wheels with brake
TECHNICAL SPECIFICATIONS
| Humidity range |
1% to 60% RH |
| Controller |
- Digital controller
- Humidity setting buttons
- Display of Temperature & Humidity
|
| Display precision |
±3% RH, ±1°C |
| Humidity sensor |
Honeywell make humidity sensor |
| N2 flow meter |
Nitrogen flow meter w/ control valve |
| Construction |
- 1mm thick cold rolled steel sheet
- ESD safe paint coating
|
| Glass window |
3.2mm toughened glass window |
| Lock |
Zinc alloy lock cabinet door lock |
| Mounting |
Caster wheels w/ brake |
| Power supply |
220 Volts 50Hz |
| Optional |
- Oxygen content sensor
- Data logger w/ USB port
- Open door signal alarm
- Over humidity signal alarm
- Extra shelves
|
STANDARD SIZES / DIMENSIONS
| Model |
Volume |
Inner Dimensions
(W x D x H) |
Overall Dimensions
(MM) |
Shelves |
| N2DC160 |
160L |
446 x 422 x 848 |
448 x 450 x 1010 |
3PCS |
| N2DC240 |
240L |
596 x 372 x 1148 |
598 x 400 x 1310 |
3PCS |
| N2DC320 |
320L |
898 x 422 x 848 |
900 x 450 x 1010 |
3PCS |
| N2DC435 |
435L |
898 x 572 x 848 |
900 x 600 x 1010 |
3PCS |
| N2DC540 |
540L |
596 x 682 x 1298 |
598 x 710 x 1465 |
3PCS |
| N2DC718 |
718L |
596 x 682 x 1723 |
598 x 710 x 1910 |
5PCS |
| N2DC870 |
870L |
898 x 572 x 1698 |
900 x 600 x 1890 |
5PCS |
| N2DC1428-4 |
1428L |
1198 x 682 x 1723 |
1200 x 710 x 1910 |
5PCS |
| N2DC1428-6 |
1428L |
1198 x 682 x 1723 |
1200 x 710 x 1910 |
5PCS |
