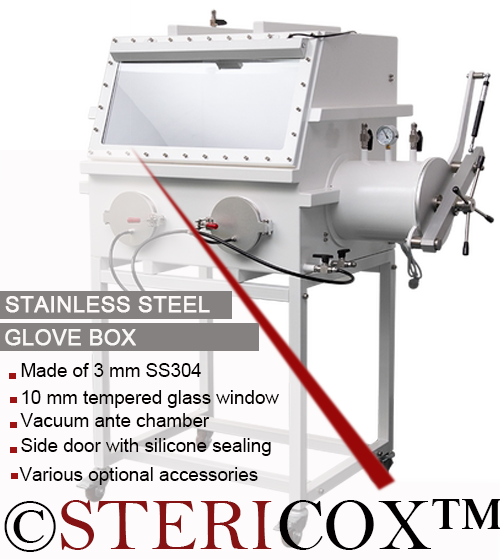

Stainless steel laboratory glove box is used in Physics and chemistry research, battery and nuclear research and manufacturing laboratories etc. Stainless steel glove box by STERICOX come in two different configurations; First is Main chamber with vacuum ante chamber and second is Main and Antechamber both with vacuum. Overall construction of this glove box is 3 mm stainless steel 304 (SS316 is optional). Front window panel has 10 mm tempered glass; wide angle without any dead space. Two latex or butyl gloves are fitted on front. Side door is an optional part and it comes with silicone seal gasket and durable pull action clamp locking facility. Although side door is an optional part, it is required to keep large size materials / instruments inside the main chamber that cannot be passed through ante chamber. Each stainless steel glove box comes with important accessories that may be useful for specific application. Automatic humidity controller, Oxygen analyzer, Automatic pressure controller, Oil filled Vacuum pump and movable stand etc. Engineers are STERICOX carefully design and manufacture stainless steel glove boxes to meet stringent test requirements. We supply these glove boxes throughout India at factory price and also export to Russia, Nepal, Bhutan, UAE, Africa, USA, Greece and UK etc.
TECHNICAL SECIFICATIONS
Model |
STXSGB2 |
STXSGB3 |
STXSGB4 |
Inner dimensions |
600*450*420 mm |
780*650*700 mm |
1120*740*900 mm |
Side door (L*W) |
300*260 mm |
350*300 mm |
350*300 mm |
Ante chamber (Dia.*L) |
210*260 mm |
240*260 mm |
385*400 mm |
Ante chamber vacuum |
-0.1MPa |
-0.1MPa |
-0.1MPa |
Main chamber |
Made of stainless steel 304 (3 mm) |
External chamber surface |
Spray white paint |
Window panel |
Removable 10 mm temperature glass window |
Valves |
Main chamber gas purge valve |
Light |
White light in front of glass |
Electric socket |
electric socket in the main chamber |
Glove |
Latex or butyl gloves with silicone rubber sealing rings |
Flanges |
KF flanges for later upgradation |
Pressure gauge |
Dial type pressure gauge for ante chamber |
Optional |
- Main chamber vacuum -0.1MPa
- Humidity controller w/ flow control valve
- Automatic pressure controller
- Automatic controller for oxygen 200 ppm-21%
- Dew point analyzer
- Temperature & Humidity display panel
- Oil filled vacuum Pump
- Movable stand
|
