We are sieve shaker manufacturers and suppliers in India. Our test sieve shaker machine is rugged and made of thick mild steel and mounted on heavy cast iron base. The complete unit comprises of motor assembly, two steel rods and clamps, sieves stand mounted on helical spring, speed regulator to control vibration level and a mechanical timer to adjust the time of sieving analysis. The overall performance of these laboratory sieve shakers are excellent and you achieve smooth and effective sieving every time.
Test sieves of various sizes are available on request. These test sieves are made of brass frame and brass cloth. These sieves are supported by Lid and Pan to collect final sample. For complete price list and other important details, please emails us or just make a call to us.
Test Sieves as per IS Code:7640-1975: 11.2 mm, 8.0 mm, 5.6 mm, 4.0 mm, 2.8 mm, 2.0 mm.
TECHNICAL SPECIFICATIONS
| Model |
STXMSS8 |
STXMSS12 |
| Housing |
Heavy gauge mild steel powder coated |
| Standard fittings |
Clamps and steel rods |
| Test sieves |
8 x 2 inch (Dia. x Height) |
12 x 2 inch (Dia. x Height) |
| Number of test sieves |
6 |
| Motor |
¼ HP |
| Vibration control |
Speed regulator |
| Timer |
Mechanical timer up to 60 minutes |
| Power supply |
220 Volts 50Hz |
| Optional |
- Brass test sieves with Lid & Pan
- Stainless steel test sieves
- Digital timer 0 – 60 minutes
|

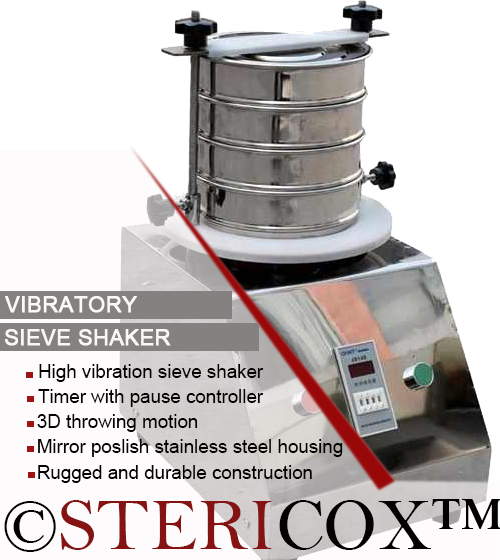

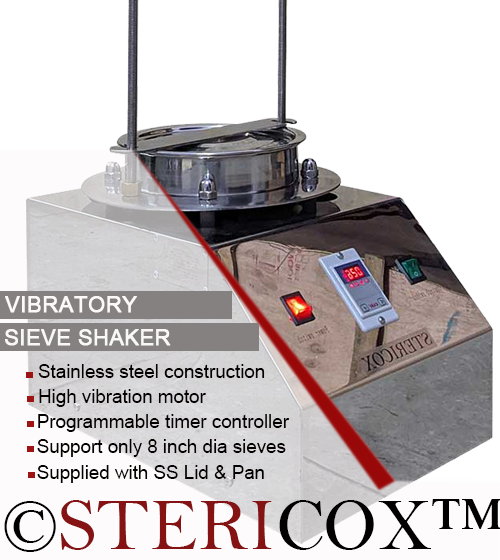

VIBRATORY SIEVE SHAKER
This vibratory sieve shaker is a high frequency tabletop sieving machine especially designed for precise sieving applications. It is an economical substitute of electromagnetic sieve shaker. It is fitted with enhanced design vertical vibration motor which creates vertical and inclined three dimensional vibrations which further provides precise sieving results even in 10 micron sieves. It is 100% corrosion resistant; made of stainless steel and supplied with clamping device, SS lid and pan and programmable timer controller.
| Model |
STXVSS8 |
| Sieve diameter |
200 mm (8 inch) |
| Quantity of sieves |
1 to 5 Nos. |
| Vibrating frequency |
1400 r/min |
| Vibrating amplitude |
1-4 mm |
| Exciting force |
3 KN |
| Timer |
999 minutes |
| Motor |
Vertical vibration motor |
| Motor power |
120 W |
| Power supply |
220 Volts 50Hz |
| Overall dimensions |
360*300*360 mm |
| Accessories |
Supporting clamps & Rods |
| Housing |
Stainless steel |
Test Sieves Chart ISO 3310-1
| MESH |
MICRON |
MESH |
MICRON |
| 2 |
11,100 |
90 |
160 |
| 3 |
7,090 |
100 |
140 |
| 4 |
5,160 |
120 |
117 |
| 5 |
4,040 |
130 |
109 |
| 6 |
3,350 |
140 |
107 |
| 8 |
2,460 |
150 |
104 |
| 10 |
1,910 |
160 |
97 |
| 12 |
1,520 |
170 |
89 |
| 14 |
1,300 |
180 |
84 |
| 16 |
1,130 |
200 |
74 |
| 18 |
980 |
250 |
61 |
| 20 |
860 |
270 |
53 |
| 24 |
700 |
325 |
43 |
| 30 |
520 |
400 |
37 |
| 35 |
450 |
500 |
25 |
| 40 |
425 |
635 |
20 |
| 50 |
280 |
800 |
15 |
| 60 |
230 |
1250 |
10 |
| 70 |
200 |
|
|
| 80 |
180 |
|
|
