Refrigerators & Freezers

Ultra low deep freezers (-86°C) for medical and laboratory applications

Ultra Low Freezer -86°C

An ultra low temperature freezer is widely used for storage of various samples that require low temperature up to -86°C, sensitive stem cells, plasma, semen, virus, bone graft and other biological samples are stored for research purposes in such ultra low deep freezers. ULT is short form of Ultra Low Temperature; therefore, they are also called ULT Freezers. These freezers are used in life science research institutes, hospitals, and pharmaceutical and biotech companies and some industrial applications also.

Our company is one of known ISO certified ultra low temperature freezer manufacturers in India. The company has knowledge, experience and latest machines to construct an ultra low freezer best suited to your laboratory space and usage. It may further be able to be fitted with choice of accessories to take optimum use of the machine. Our ultra low temperature freezers provide uniform temperature for your critical samples (cell culture plasma, serum, sensitive stem cells, and other biological samples) and research applications that require low temperature up to -80°C or -86°C.

. These ULT Freezers also helpful in Covid vaccine storage at -70°C.

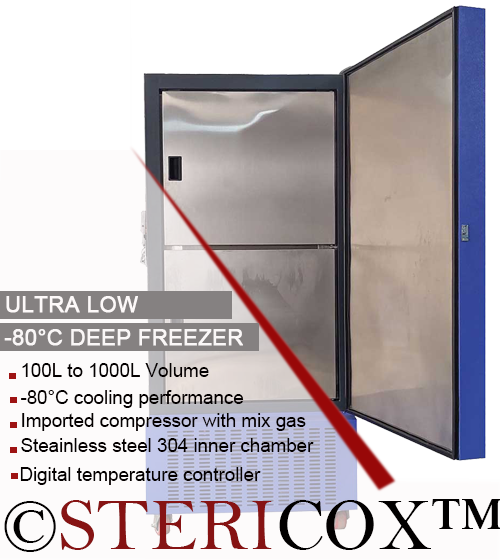

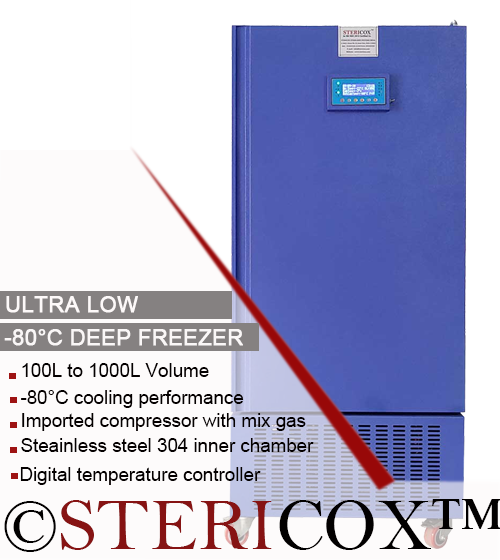

Our minus 80 degree ultra low deep freezers come with 7 inch touch screen controller. Each unit is ruggedly constructed with inner and outer doors. Double layered silicone rubber gasket provides efficient sealing. Other features include excellent temperature accuracy, VIP vacuum thermal insulation, 72 hours battery backup for controller display and delay start function. These units are imported models and delivery years of worry free performance without need of much maintenance. We supply these ULT freezers at wholesale price all India with installation and commissioning and immediate after sales service.

FEATRURES / BENEFITS

  • Temperature range up to -80°C, -86°C
  • 7" color touch screen controller
  • USB data storage facility
  • Stainless steel inner construction
  • Inner and outer doors
  • Energy efficient refrigeration system
  • 72 hours battery backup for display
  • Caster wheels with brake
  • Optional CO2 backup system & printer

TECHNICAL SPECIFICATIONS

Temperature range -50°C to -86°C
Cooling performance -86°C
Ambient temperature 16°C to 26°C
Controller
  • 7 inch touch screen
  • Password protection
  • Intuitive display
Display accuracy 0.1°C
Data storage USB data storage facility
Sensor PT100
Internal chamber 304 stainless steel
External cabinet Steel sheets with high quality spray
Insulation thickness 130 mm
Insulation VIP Plus vacuum  insulation panel
Gasket Silicone rubber
Doors Inner and outer doors
External door Insulated door with lock & key
Shelves SS304 shelves
Cooling type Direct cooling
Refrigerant CFC free mixture gas / 600
Mounting Caster wheels w/ brake
Power supply 220 Volts 50Hz
Safety
  • 72 hrs battery backup for controller display
  • Machine startup delay
  • Power off protection
Alarm
  • High / low temperature
  • Sensor broken
  • Power failure
  • Door open alarm
Optional
  • Temperature chart recorder
  • CO2 backup system
  • Storage racks / boxes
  • Printer

Standard Sizes / Dimensions

Model Inner dimensions (W*D*H) Volume
DW-HL398S 440*696*1266 mm 398 Liters
DW-HL528S 585×696×1266 mm 528 Liters
DW-HL678S 750*696*1286 mm 678 Liters
DW-HL778S 865*696*1286 mm 778 Liters
DW-HL858S 877*696*1378 mm 858 Liters
DW-HL1008S 1022*696*1378 mm 1008 Liters
Ultra Low Freezer Minus 80 Degree
Ultra Low Temperature Freezer
100 liters Ultra Low Temperature Freezer
Minus 80 Ultra Low Freezer
