ULTRASONIC CLEANER

Ultrasonic cleaning machines with filtration system for enhanced effect

Ultrasonic Cleaner with Filtration System

For some specific cleaning purposes, we make ultrasonic cleaning machines with filtration system. During cleaning process, filtration system filters out contaminants (metal chips, fines, burned carbons and other particulate residues) removed from materials to be cleaned. It is a circulation system, which keeps running throughout the cleaning process. In such ultrasonic cleaners, a filtration assembly is fitted, which comprises of filtration tank, motor pump and filters. There are many benefits of using filtration system with ultrasonic machine; first, it delivers most efficient cleaning as compared to basic ultrasonic cleaners, second, it extends life of cleaning agent or fluid and third is possibility of re-deposit of contaminants almost zero. In this way, Ultrasonic cleaning machines with filtration system perfectly meets your requirements.

We STERICOX are ultrasonic cleaner manufacturers and suppliers in India. We make wide range of ultrasonic cleaners with filtration system. From 38 Liters to 1500 Liters, we have experience and engineering expertise to cater your requirements. In addition to below mentioned standard models, we also make customized ultrasonic cleaning machines with filtration system. If you have any specific design or size you are welcome to discuss with us. We assure you of best possible solution at highly competitive price in India.

TECHNICAL SPECIFICATIONS

Ultrasonic frequency 40 KHz
Temperature range 35°C to 95°C
Temperature controller Digital temperature controller
Timer 0 to 99 hours
Timer controller Digital timer
Ultrasonic power Adjustable
Generator External
Filtration system Filter tank, motor and filter
Construction Stainless steel 304
Power supply 220 Volts or 415 Volts 50Hz

STANDARD SIZES / DIMENSIONS

Model Volume Inner tank dimensions Ultrasonic power (W)
STXFUC38 38 Liters 500*300*250 mm 0 – 600
STXFUC64 61 Liters 500*350*350 mm 0 – 900
STXFUC68 88 Liters 550*400*400 mm 0 - 1200
STXFUC108 108 Liters 600*450*400 mm 0 - 1500
STXFUC96 96 Liters 800*300*400 mm 0 - 1500
STXFUC135 135 Liters 600*500*450 mm 0 - 1800
STXFUC175 175 Liters 700*500*500 mm 0 - 2400
STXFUC264 264 Liters 800*600*550 mm 0 - 3000
STXFUC360 360 Liters 1000*600*600 mm 0 - 3600
STXFUC540 540 Liters 1000*900*600 mm 0 - 5400
STXFUC960 960 Liters 1200*1000*800 mm 0 - 7200
STXFUC1500 1500 Liters 1500*1000*1000 mm 0 - 10800

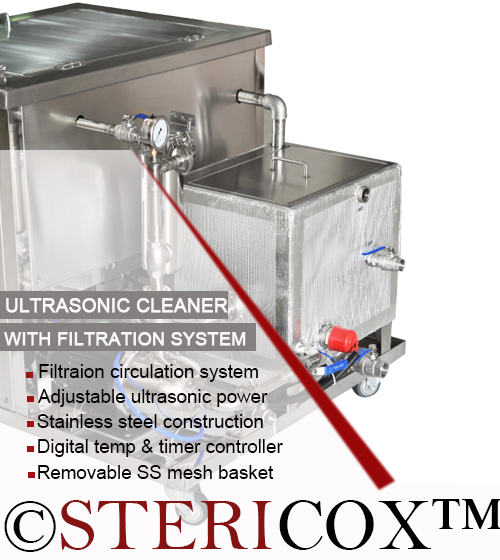

Ultrasonic cleaner with filter circulation system
Ultrasonic Cleaner with filtration system
Submit Your Request

Ultrasonic Cleaner With Filtration Working Video

Need Customization?
Let us design specific ultrasonic cleaner with filtraion system
