Rectangular and Cylindrical Pass Through Autoclaves

Double Door Autoclave

A double door autoclave is fixed between two adjacent rooms. In such autoclaves, operator at one side puts samples inside the chamber and initiates sterilization process, after completion of sterilization, buzzer beeps and operator at other side, opens the door and removes the sterilized samples. Also known as pass through autoclaves, these sterilizers are especially used in cleanroom areas and where contaminant applications are prime requisite.

Note: in order to fix / install a double door autoclave, little alteration or modification in current location (place where autoclave to be installed) is required.

We have proven track record in designing pass through autoclaves for contaminant laboratories. Stericox™ double door autoclaves are horizontal, wall mounted sterilizers having doors at both sides. These autoclaves are constructed in both cylindrical and rectangular shapes as required. Other features such as printer, digital temperature controller, buzzer etc. are same as provided in horizontal autoclave. These machines are bespoke, cost effective and superior in performance. Availability of various options and fittings make these units finest choice in the current Indian market.

If you are looking to buy a double door autoclave for your laboratory, please provide us your specifications, your application details and choice of accessories you want in your autoclave. Our technical person will contact you, discuss your requirements and prepare a budgetary quote.

Features & Benefits

  • Cylindrical / Rectangular design
  • Stainless steel interior and exterior
  • ISI marked flange / immersion heating elements
  • Working pressure 15 psi to 20 psi
  • Standard temperature 121°C
  • Silicon rubber door gasket
  • Digital Temperature controller
  • Digital Timer and alarm (buzzer)
  • Automatic pressure control switch
  • Reliable steam pressure gauges
  • Vacuum breaker and steam trap valve
  • Brass safety valves
  • Viewing glass water level check
  • Triple walled construction
  • Automatic water level cut-off
  • Powder coated / chrome plated MS Stand


Optional Features & Accessories

  • Working at 30 psi with 134°C
  • PLC with HMI interface
  • Complete SS 316 construction
  • Doors at both sides
  • Provision for vacuum drying
  • Data logger with USB interface


STERICOX™ DOUBLE DOOR AUTOCLAVE (CYLINDRICAL)

Model No. Dia. x Height (mm) Volume (Liters)
STXDDAC075 400 x 600 75
STXDDAC138 400 x 1100 138
STXDDAC176 500 x 900 176
STXDDAC178 550 x 750 178
STXDDAC235 500 x 1200 235
STXDDAC339 600 x 1200 339
STXDDAC552 750 x 1200 552


STERICOX™ DOUBLE DOOR AUTOCLAVE (RECTANGULAR)

Model No. W x H x D (mm) Volume (Liters)
STXDDAR182 450 x 450 x 900 182
STXDDAR243 450 x 600 x 900 243
STXDDAR324 600 x 600 x 900 324
STXDDAR432 600 x 600 x 1200 432
STXDDAR540 600 x 750 x 1200 540
STXDDAR810 600 x 900 x 1500 810
STXDDAR1215 900 x 900 x 1500 1215
Double Door Autoclave

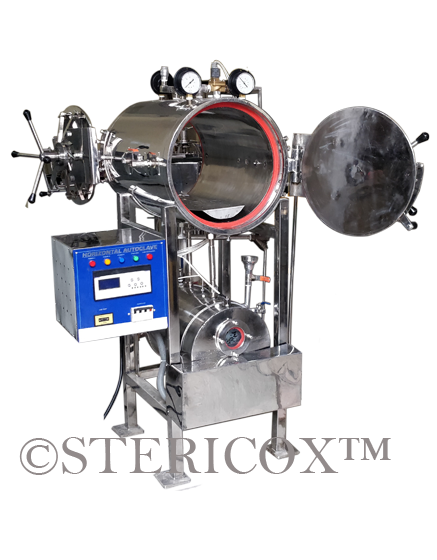

Double Door Cylindrical Autoclave 75 Liters
