Autoclave

Horizontal size autoclave or retort sterilizers for food & mushroom industry

Retort Autoclave

These food industry autoclave are often called retort sterilizers because these autoclaves are used to sterilize retort pouches; in addition, these horizontal autoclaves are also used to sterilize empty glass bottles, packed foods, metal cans / tin packed food, liquid filled plastic and glass bottles and mushroom. The core objective of these retort autoclaves is to provide optimal preservation of food, while eliminating harmful bacteria and microorganisms. At STERICOX, we design, manufacture, supply and install customized retort autoclaves for food industry. These autoclaves are available from small, medium, and large sizes and each size is available only in horizontal design with loading trolley and carriage.

Our retort steam sterilizers come in semi and fully automatic operation and designed with electrical heating and steam heating (boiler required from client side). These retort sterilizers are made with fully Stainless Steel 304 or Carbon Steel as per budget. We sell our retort autoclaves throughout India and export to Canada, USA, Netherland, Greece, UAE, Philippines, Vietnam and Australia at factory price.

TECHNICAL SPECIFICATIONS

MOC Stainless steel 304 / 316 OR Carbon steel
Insulation Aluminum silicate
Vessel design Cylindrical
Door sealing Silicone rubber seal
Door closer Mechanical lock
Design pressure 0.35 Mpa/ 50.8Psi
Max working pressure 0.3 Mpa/ 43.5Psi
Max working temperature 121°C
Design temperature 147°C
Mode of operation Semi-Automatic
Controller Microprocessor based controller
Power supply 415V/50 Hz Three phase or as required
Optional Fully automatic operation
PLC based color touch screen controller
F Value calculation
Water spray cooling


STANDARD SIZES & DIMENSIONS

Volume Diameter Cylinder Length Total Length Capacity
700L 700 mm 1200 mm 1700 mm 120-150 kg
800L 800 mm 1500 mm 2300 mm 200-250 kg
900L 900 mm 1800 mm 2500 mm 300-350 kg
1000L 1000 mm 2200 mm 3000 mm 500-550 kg
1200L 1200 mm 3000 mm 3800 mm 800-1000 kg
Retort Autoclave

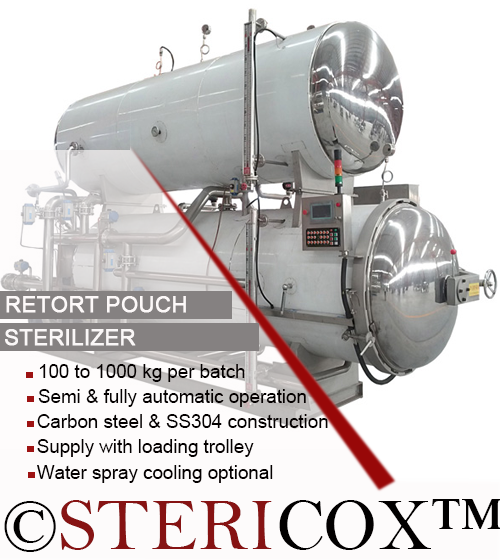

Retort Pouch Sterilizer
