A blood bank centrifuge is primarily used for blood component separation. In a blood bank whole blood is collected from donors which contains various components including red blood cells, white blood cells, platelets and plasma. Using rotations force, this blood bank centrifuge separates these blood components based on their density in liquid mixture. This process is crucial for obtaining specific blood products, such as packed red blood cells, platelet concentrates, and fresh frozen plasma, which are used in various medical treatments.
Blood bank centrifuge is also used for blood compatibility testing to ensure that the donated blood is compatible with the intended recipient. This helps prevent adverse reactions when transfusing blood products.
Blood bank centrifuge working explained:
A blood bank centrifuge is fitted with specialized containers called centrifuge tubes or bags which rapidly spins the sample of blood or blood components in bags using a strong centrifugal force. It causes denser components of blood to move to the bottom or the tubes while the less dense components move up to the top. After completion of this process we find blood separates into distinct layers; red blood cells at the bottom, a buffy coat layer containing white blood cells and platelets in the middle, and plasma at the top. Once the separation process in blood bag centrifuge is complete, the desired blood component can be carefully extracted, processed, and prepared for storage or transfusion as needed.

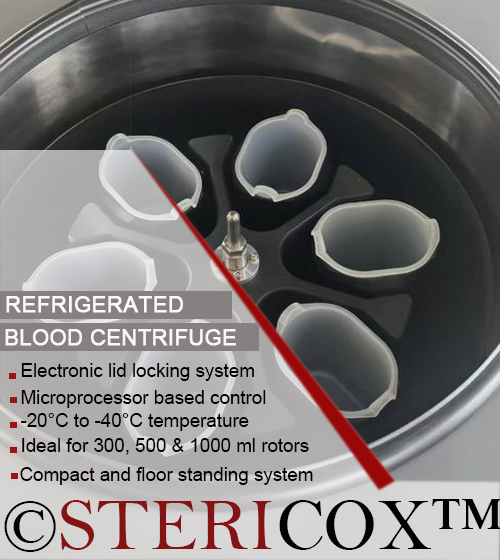

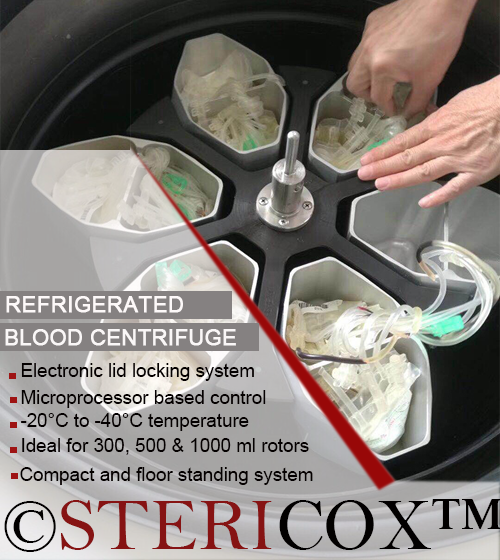

Also known as Blood Bag Centrifuge, this blood bank centrifuge is especially designed for high precision blood separation process. This refrigerated blood centrifuge features microprocessor based fully automatic control system, refrigerated temperature and suitable for 300, 500 and 1000 ml volume rotors. Both angle and swing rotors can be used in this blood centrifuge. Our refrigerated blood bank centrifuge plays critical role in the blood banking process, helping to ensure the availability of safe and compatible blood products for medical treatments and emergencies.
Refrigeration system is the most important feature of this blood bank centrifuge. This refrigeration system eliminates chances of damage of blood bags during centrifugal rotation that occurs due to heating. General settings may remain between 4°C to 12°C. With double solenoid valve control, temperature control becomes more accurate and reliable. Driving system of this blood centrifuge is durable because of use of imported variable frequency motor. It features large torque, anti-interference, low noise and long service life. The flexible shaft has self-compensation function that minimizes random disturbance during acceleration and deceleration and withstand a little unbalance.
Electric lid locking mechanism, compact floor standing design, excellent speed and imbalance protection are some of the attractive features that make it stand out from other brands in the Indian market today. We supply our blood bag centrifuge at competitive price in India and also export to UAE, Greece, Philippines, Vietnam and Africa.
| Model | STX-DL6MB | ||
|---|---|---|---|
| Max. Speed | 6000 rpm | ||
| Max. RCF | 6600*g | ||
| Max. Capacity | 6x1000 mm (6*500ml) blood bags | ||
| Time range | 0-9 hours 59min | ||
| RPM/RCF Convert | Yes | ||
| Temperature | -20°C / -40°C | ||
| Acc / Dcc | 10 | ||
| Speed Accuracy | ±20r/min | ||
| Weight | 300 kg | ||
| Power supply | 220 Volts 50Hz | ||
| Rotor No. | Max Speed(rpm) | Max Volume (ml) | Max.RCF（×g） |
| Swing Rotor | 4200 | 6 × 1000ml | 5100 |
| Angle Rotor | 6000 | 4 × 300ml | 5390 |
| Angle Rotor | 6000 | 6 × 300ml | 5660 |
| Angle Rotor | 6000 | 6 × 500ml | 6600 |
