UV weather test chamber with UVA or UVB lamps & water spray

UV Weathering Test Chamber

A UV weather test chamber is also known as a UV accelerated weathering test chamber or UV exposure chamber. This specialized laboratory equipment is used to simulate and accelerate the effects of sunlight and UV radiation on various materials and products including textile, cables, plastic parts, color coated plates etc. It is commonly employed in industries such as automotive, aerospace, textiles, plastics, coatings, and electronics to assess the durability and long-term performance of materials when exposed to sunlight and UV radiation.

Now we now that UV Weathering Test Chamber creates artificial weathering condition with combination of Ultraviolet radiation, moisture and heat in order to test damaging results of material by long term outdoor exposure. This chamber is widely used by quality control and research and development for most plastics, textiles and pigments etc. A UV Weather Test chamber is suited for standards including ASTM D4329, ASTM G151, ISO 4892-1/3, ISO 11507, ISO 11895, EN 927-6, EN 12224, SAE J2020 and JIS D 0205. Different manufacturers use UV weather test chambers to compare different materials, coatings, or formulations for UV resistance. This helps them select the most suitable materials for their specific applications. The results obtained from UV weather test chamber testing is very important for designing and developing products that can withstand varied outdoor environmental conditions, such as sunlight, rain, and temperature fluctuations. It aids in quality control, performance optimization, and the development of more durable and reliable products.

A UV weather test chamber typically comprise of:

  • UV Light Source: A UV Weather Test Chamber is equipped with UV lamps that emit UV radiation similar to that of the sun. Depending upon type of specimen and test standard we use UVA and UVB radiation tubes.
  • Temperature and Humidity Control: This UV test chamber also controls temperature and humidity levels to create artificial environmental conditions. UV exposure combined with varying temperature and humidity can lead to accelerated degradation of materials; usually humidity is not controlled and only displayed on the screen. It is automatically generated 85% or higher.
  • Sample Mounting Arrangement: Samples or specimen of the material being tested are placed inside the chamber. Corrosion resistant stainless steel sample holders are used on both sides front and rear sides are fitted. These sample holders hold the specimen in form of finished products, components, coatings, textiles, plastics, or any other material that needs to be evaluated for its UV resistance.
  • Exposure Test Cycles: The UV Weather chamber runs exposure test cycles that simulate different environmental conditions including alternating periods of UV radiation, darkness, and controlled temperature and humidity changes. The duration of the test can vary based on the material and the level of acceleration desired and test standards.
  • Monitoring and Evaluation: During the test, various parameters are monitored, such as UV intensity, temperature, humidity, and exposure time. After the test, the samples are evaluated for changes in color, gloss, surface integrity, mechanical properties, and other relevant characteristics. This helps determine how well the material withstands UV exposure over time.

In UV ageing test chambers ultraviolet radiation is created by UV lamps, dew and rain impact are created by forced condensation and heat is generated by heating elements. UV lamps are available UVA (340nm) or UVB (313nm) as per test requirement. For water spray, there are nozzles that work with motor pump. Controlling function is completely programmable; for this purpose, we use 7-inch color screen controller. It allows you to do settings of temperature, light and water spray test along with time. Overall construction is made of stainless steel 304. In order to keep samples, there is a perforated tray, which is height adjustable. In addition to standard model of UV Test Chamber, we also make customized chamber to meet specific requirement of customer. We carefully design each UV Weather Resistance Test Chamber to let you experience trouble free working performance. We supply these chambers throughout India and export at competitive price.

TECHNICAL SPECIFICATIONS

Model STXUVA240F STXUVA240T
Design type Flat type Tower type
Sample placement Samples placed on a flat shelf Samples placed on vertical fixtures through round clamps
Sample Holder No requirement; samples placed on the flat shelf only 75 x 290 mm (L x W)
Inner size 1150 x 500 x 500 mm (W x D x H) 1170 x 400 x 500 mm
External size 1350 X 600 x 1560 mm (W x D x H) 1350 X 550 x 1500 mm (W x D x H)
Test standards comply ASTM G154/G53, ASTM D4329, ASTM D4587, AATCC 186, SAE J2020, JIS D 0205, ASTM C-1442, ASTM D-904, ASTM D-5215
Temperature range Ambient+10°C to 70°C
Temperature sensor PT100
Temperature uniformity ±1°C
Temperature fluctuation ±0.5°C
Testing time 0 to 999 Hours
Construction Stainless steel 304
Humidity range ≥ 90%RH (Not controlled; only display)
Controller
  • 7” color touch screen controller
  • Fixed & Programmable running modes
  • Condensing temp, Black Board Temperature, UV irradiance settings
  • Irradiation start / stop timer function
UV lamp location Top Front & Rear sides
UV Lamp power 40W / per lamp
UV Lamp quantity 8 Nos.
Test cycle setting Illumination, condensation and water spray test cycle is programmable
Irradiance 0 - 2.0 w/cm2 Adjustable 0 - 1.0 w/cm2 Adjustable
Ultraviolet light UV-A: 315-400nm OR  UV-B: 280-315nm
1300h lifetime, length: 120 cm
Distance between lamps 70mm
Distance from samples to lamp 50 ±2mm
Standard Specimen Size 75×150mm or 75×290mm
Water spray Spray Nozzles
Water spray mechanism
  • Manual storage tank made of SS304
  • Low water level safety sensor
  • Water filtration system
  • Motor pump for spray
Air circulation Blower assembly with duct
Protection system
  • Overload short circuit protection
  • Over temperature protection
  • Water lack protection
  • Earth leakage protection
  • Auto shut off protection
Power 220V 50Hz

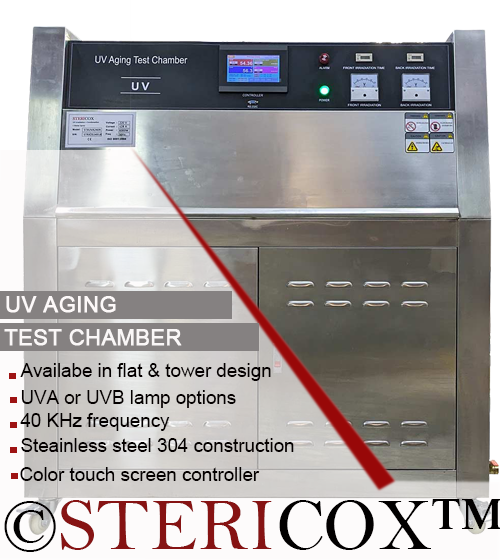

UV Aging Test Chamber

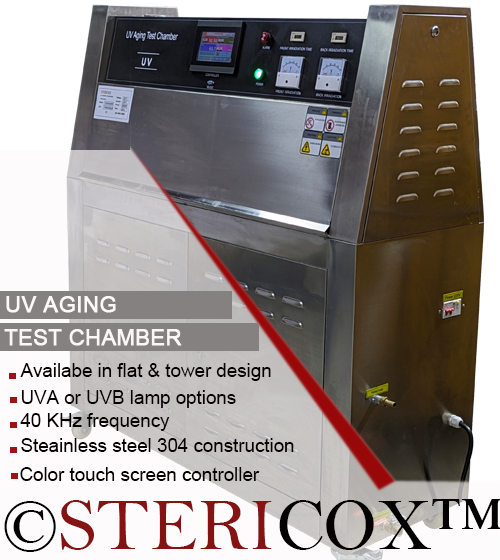

UV Aging Test Chamber

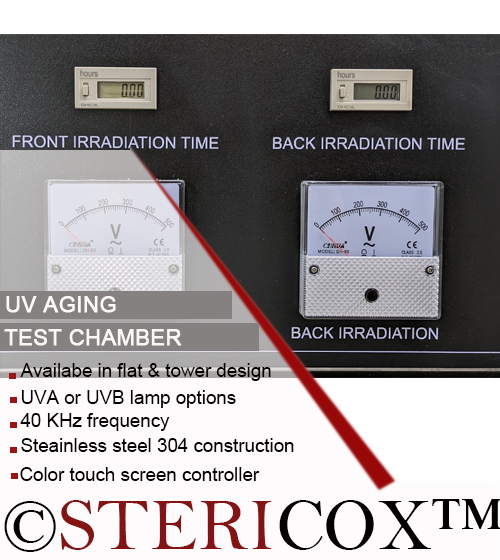

UV Aging Test Chamber

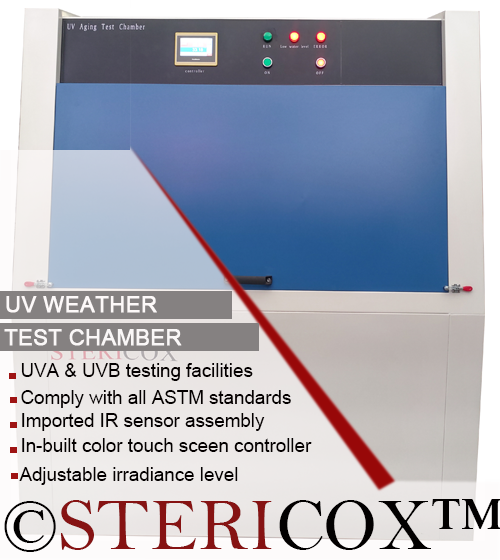

UV Weathering Test Chamber

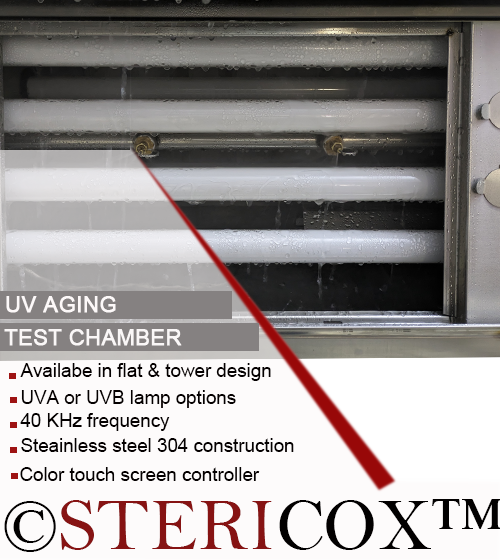

UV Weathering Test Chamber with water spray
UV Weathering Test Chamber
UV Weathering Test Chamber
UV Weathering Test Chamber
UV Weathering Test Chamber sample holder

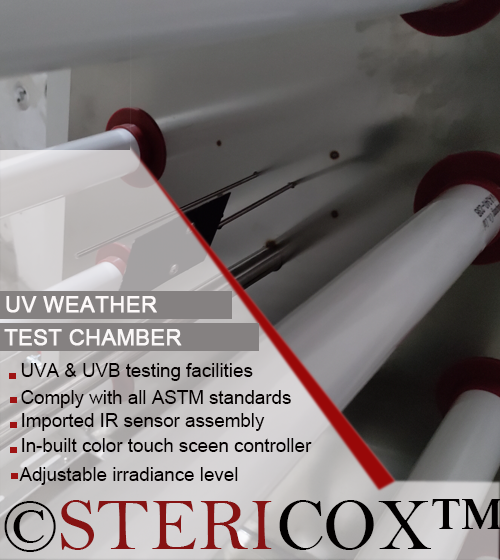

UV Weathering Test Chamber Tube
