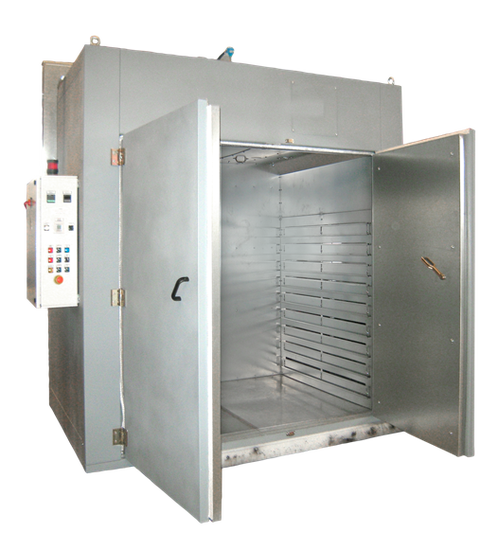

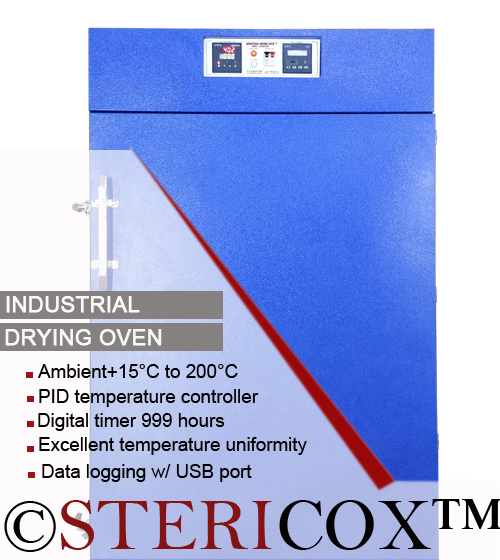

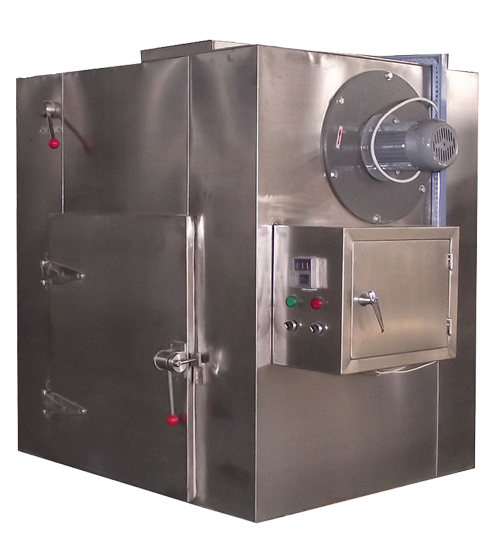

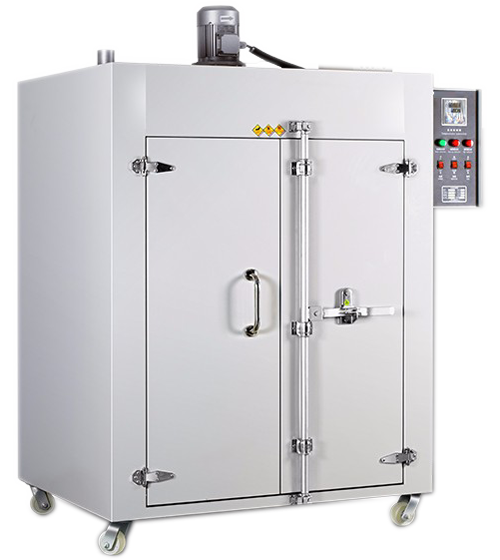

Industrial ovens are usually large in size and used for preheating and drying production batch material. An Industrial drying oven is mostly used in industries related to electronics, semiconductor, polyurethane, polymer, rubber and pharmaceutical etc. With digital temperature controller, air blower unit and heaters they generate heating environment required for drying, aging, annealing or curing applications.
We are industrial oven manufacturers in India. Our company has been making cost effective though high performing industrial ovens for over 20 years. Standard ovens are equipped with digital temperature PID controller which displays both SV and PV values, air blower unit and tubular air heaters. Depending upon applications, these ovens are provided with wire mesh cable trays or movable trolley with in-built racks.
We also make customized industrial ovens at economical price for customers that may have unique requirements. We can customized the chamber size and make the exact unit that suits their needs; in addition, we can also fit PLC based HMI controller which has color touch screen and can store large amount of data that can transferred into pen drive easily. We also provide strip or circular chart recorders that continuously records temperature on paper.
TECHNICAL SPECIFICATIONS
Temperature range |
Ambient+10°C to 200°C, 300°C, 400°C |
Inner construction |
Stainless steel 304 (20 or 18 gauge) |
Exterior construction |
Powder coated GI sheet |
Air circulation |
Motor driven blower unit |
Heater |
Tubular air heaters |
Insulation |
Glass wool (3 inch) |
Temperature controller |
- PID temperature controller
- Display of SV & PV
|
Standard fittings |
- Power cable
- Load indicator
- Caster wheels with brake
|
Door |
Insulated door with sturdy latch |
Trays |
Wire mesh cable trays |
Optional accessories |
- Stainless steel exterior
- Trolley with racks
- PLC based HMI controller
- Strip chart temperature recorder
- HEPA filtered air inlet
|
Power supply |
220 / 440 volts 50Hz |
STANDARD SIZES / DIMENSIONS
Model |
Chamber dimensions (W x D x H) |
Volume |
STXIDO340 |
24 x 24 x 36 inch |
340 Liters |
STXIDO680 |
24 x 36 x 48 inch |
680 Liters |
STXIDO885 |
30 x 30 x 60 inch |
885 Liters |
STXIDO1000 |
36 x 36 x 48 inch |
1000 Liters |
STXIDO1200 |
36 x 36 x 60 inch |
1274 Liters |
STXIDO1500 |
36 x 36 x 72 inch |
1529 Liters |
STXIDO2000 |
36 x 48 x 72 inch |
2039 Liters |
STXIDO2700 |
48 x 48 x 72 inch |
2718 Liters |
