Chest / horizontal type cryo freezers for -152°C and -164°C for biomedical applications

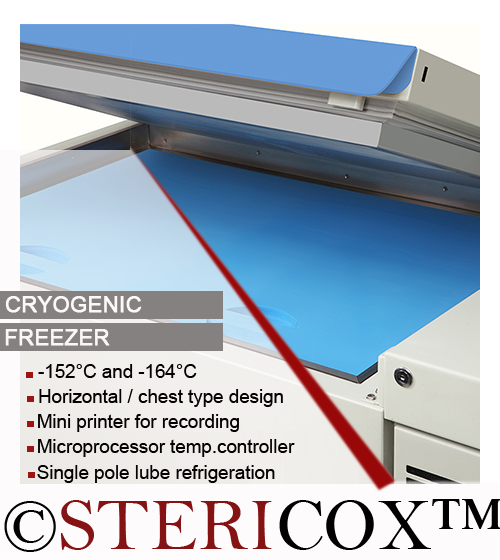

Cryogenic Freezer -152°C & -164°C

STERICOX brings to you Cryogenic Freezer range for biomedical applications for long term storage of cells and tissues. Choose from below mentioned models that come in 128 liters and 258 liters inner chamber capacities. These cryo freezers are available with temperature range up to -152°C and -164°C. Every unit features microprocessor based temperature controller, which displays current temperature value. A mini printer is also fitted on top that gives you printouts of temperature. A 72 hours battery backup is also provided for controller and printer, which works in case of powder failure. There are various safety alarms such as power failure, temperature high / low variation, sensor failure, low battery etc. These cryogenic freezers are equipped with imported single stage oil lube compressor, which guarantees excellent ultra low fast freezing for long time. To more details on price, quotation and supply and installation, please email us your query.

TECHNICAL SPECIFICATIONS

Model DW-UW128 DW-UW258 DW-ZW128
Temperature range -110°C to -152°C -110°C to -152°C -120°C to -164°C
Volume 128 Liters 258 Liters 128 Liters
Design type Chest / Horizontal Chest / Horizontal Chest / Horizontal
Inner dimensions 490*470*585 mm 1140*410*552 mm 490*470*585 mm

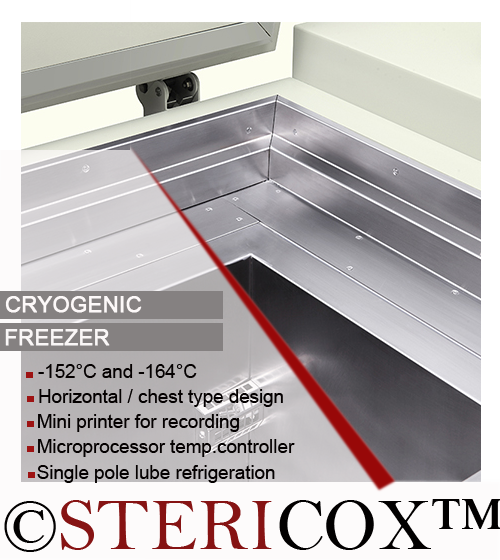

Inner chamber Stainless steel 304
External cabinet Powder coated Steel
Insulation 155mm VIP vacuum thermal insulation
Door
  • Insulated door lock & key
  • Supported w/ heavy duty hinges
Controller
  • Microprocessor based controller
  • Display of current temperature
  • Keyboard lock / password protection
Compressor Imported compressor (single-stage oil slide)
Refrigerant Mix gas
Cooling type Direct cooling
Alarm
  • High and low temperature alarm
  • High/low voltage
  • Sensor failure alarm
  • Low battery
  • Condenser heat dissipation
  • System failure alarm
Printer Micro printer
Battery 72 hours battery backup for controller & printer
Ambient temperature 16°C to 32°C
Mounting Caster wheels w/ lock
Power supply 220 Volts / 50Hz
Optional
  • Liquid N2 backup system
  • Temperature chart recorder
  • Storage racks / boxes
